  • ISCAR TS-I25 L=(1750-2600)MM 4.882 - 5.354" Drill Tubes - STS System - Inner 4 Start Thread Connection

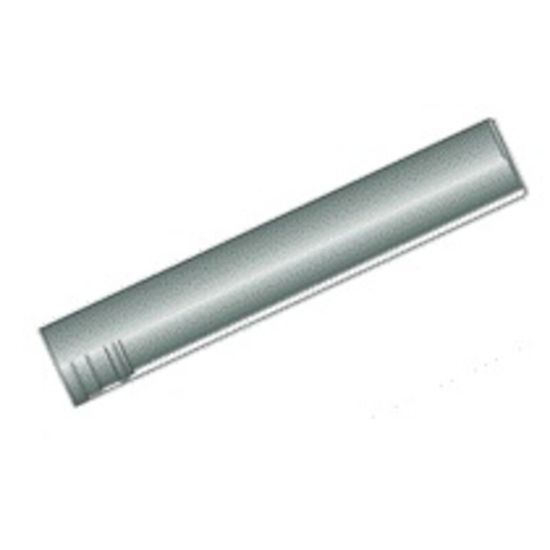

Picture of ISCAR TS-I25 L=(1750-2600)MM 4.882 - 5.354" Drill Tubes - STS System - Inner 4 Start Thread Connection

ISCAR TS-I25 L=(1750-2600)MM 4.882 - 5.354" Drill Tubes - STS System - Inner 4 Start Thread Connection

ISO: TS-I25 L=(1750-2600)MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3350075
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Application Deep Hole Drilling, Gun Drilling
Made In USA No
Dimensional Specifications
Cut Dia Max 5.3540 135.99MM
Cutter Dia 4.8819 124.00MM
Tool Material Steel
Overall Len 68.9000 1750.06MM - 102.3000 2598.42MM
Flutes/Inserts 2
Cut Dia Min 4.8819 124.00MM
Cutting & Machining Properties
Connection TS-I25
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
