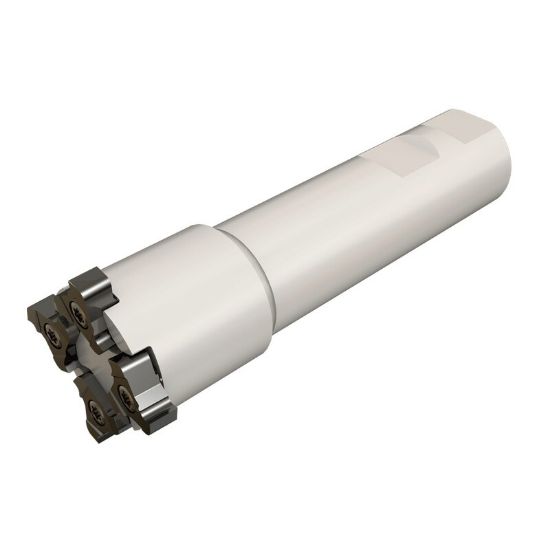

Picture of ISCAR TRIB 40-1.000W 4Z Internal Mill Grooving,Slot Mill Milling Cutter 1.000 Tool

ISCAR TRIB 40-1.000W 4Z Internal Mill Grooving,Slot Mill Milling Cutter 1.000 Tool

ANSI: TRIB 40-1.000W 4Z

ISO: TRIB 40-1.000W 4Z

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302260
Delivery date: 3-5 days
$393.60

Important Notes

W, Tmax, f, Refer to insert data For inserts with W=.158-.256", order tools with -B suffix (deeper pockets). For example: TRIB 50-1.25W-6Z-B

Details

Bottom Shouldering Internal Groove Milling Shouldering Side Slotting

Slitting shanks carrying triple-edged precision ground inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Application Groove Milling, Slot Milling
Made In USA No
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 1.8900
Overall Len 4.5060 114.45MM
Flutes/Inserts 4
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Cutting Width 0.0470 1.19MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style TR
Fasteners & Connectors
Insert Screw SR 16-236 08223
