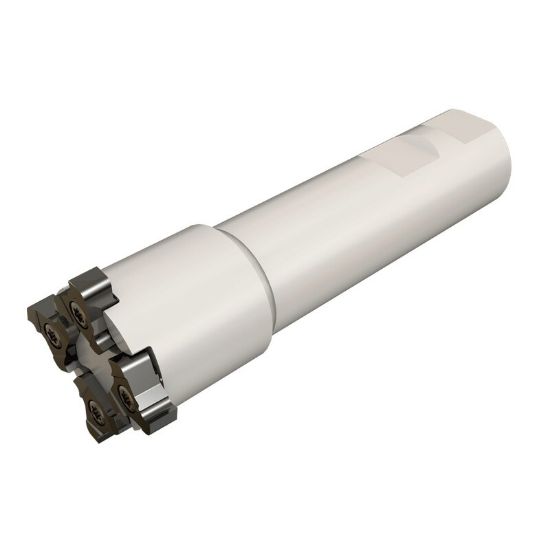

Picture of ISCAR TRIB 32-1.000W 3Z Internal Mill Grooving,Slot Mill Milling Cutter 1.000 Tool

ISCAR TRIB 32-1.000W 3Z Internal Mill Grooving,Slot Mill Milling Cutter 1.000 Tool

ANSI: TRIB 32-1.000W 3Z

ISO: TRIB 32-1.000W 3Z

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302258
Delivery date: 3-5 days
$362.88

Important Notes

W, Tmax, f, Refer to insert data For inserts with W=.158-.256", order tools with -B suffix (deeper pockets). For example: TRIB 50-1.25W-6Z-B

Details

Bottom Shouldering Internal Groove Milling Shouldering Side Slotting

Slitting shanks carrying triple-edged precision ground inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Groove Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 1.8900
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 4.5060 114.45MM
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Cutting Width 0.0470 1.19MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style TR
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw SR 16-236 08223
