  • ISCAR TR6 ERD1.25-6-4.0W1.25-07 Milling Cutter 45.0°, 90.0° 1.250 Diameter Weldon 1.250 6.280 OAL 6 Flute

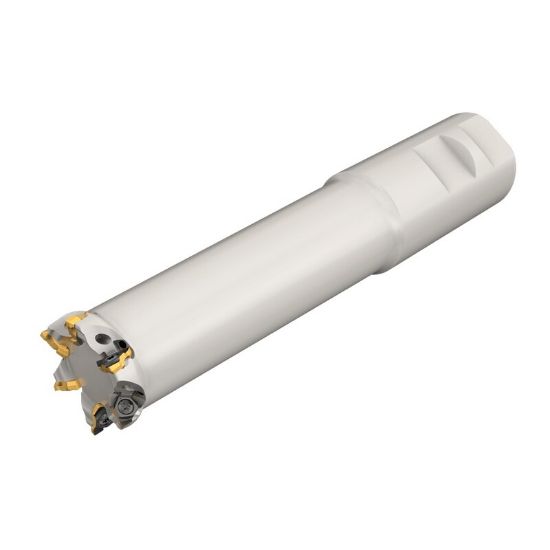

Picture of ISCAR TR6 ERD1.25-6-4.0W1.25-07 Milling Cutter 45.0°, 90.0° 1.250 Diameter Weldon 1.250 6.280 OAL 6 Flute

ISCAR TR6 ERD1.25-6-4.0W1.25-07 Milling Cutter 45.0°, 90.0° 1.250 Diameter Weldon 1.250 6.280 OAL 6 Flute

ANSI: TR6 ERD1.25-6-4.0W1.25-07

ISO: TR6 ERD1.25-6-4.0W1.25-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3344288
Delivery date: 3-5 days
$433.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Chamfering, Side Milling, Feed Milling, Face Milling
Made In USA No
Insert/Tool Tool
Insert Type Positive
Shipping State Texas
Package Size 1
Dimensional Specifications
Cut Dia Min 1.1710 29.74MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.0980
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 7
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Overall Len 6.2800 159.51MM
Flutes/Inserts 6
Cut Dia Max 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style TR
Insert Shape/Cutter Pocket Shape Multi
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7006976
