  • ISCAR TR6 ERD1.25-4-3.5W1.25-10 Milling Cutter 45.0°, 90.0° 1.250 Diameter Weldon 1.250 5.780 OAL 4 Flute

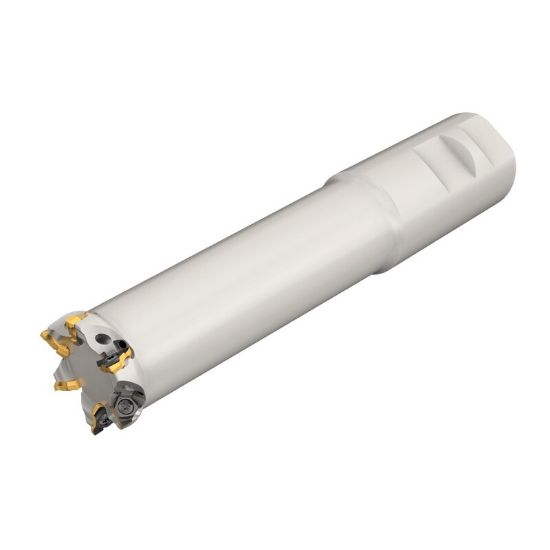

Picture of ISCAR TR6 ERD1.25-4-3.5W1.25-10 Milling Cutter 45.0°, 90.0° 1.250 Diameter Weldon 1.250 5.780 OAL 4 Flute

ISCAR TR6 ERD1.25-4-3.5W1.25-10 Milling Cutter 45.0°, 90.0° 1.250 Diameter Weldon 1.250 5.780 OAL 4 Flute

ANSI: TR6 ERD1.25-4-3.5W1.25-10

ISO: TR6 ERD1.25-4-3.5W1.25-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3344369
Delivery date: 3-5 days
$365.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering, Feed Milling, Round Milling, Face Milling, Side Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Insert Type Positive
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Weldon
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Cutter Dia 1.2500 31.75MM - 1-1/4
Overall Len 5.7800 146.81MM
Cut Dia Min 1.0530 26.75MM
Insert Size Ic 10
Depth Of Cut Max 0.0980
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Cool Sply Type External
Coolant Thru No
Insert Style TR
Insert Shape/Cutter Pocket Shape Multi
Fasteners & Connectors
Insert Screw 7006976
