  • ISCAR TR6 ERD1.00-5-3.0W1.00-07 Milling Cutter 45.0°, 90.0° 1.000 Diameter Weldon 1.000 5.280 OAL 5 Flute

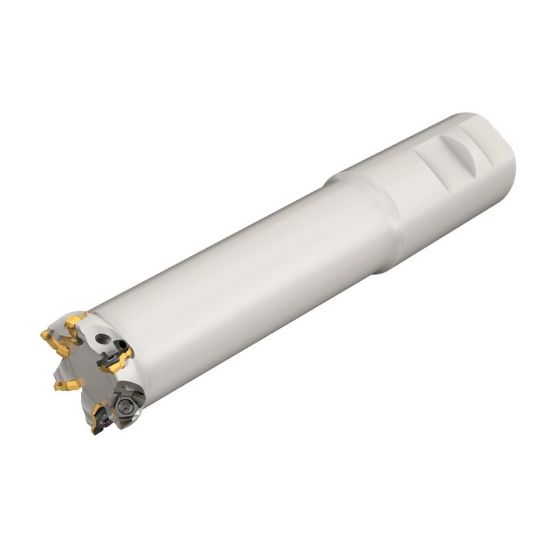

Picture of ISCAR TR6 ERD1.00-5-3.0W1.00-07 Milling Cutter 45.0°, 90.0° 1.000 Diameter Weldon 1.000 5.280 OAL 5 Flute

ISCAR TR6 ERD1.00-5-3.0W1.00-07 Milling Cutter 45.0°, 90.0° 1.000 Diameter Weldon 1.000 5.280 OAL 5 Flute

ANSI: TR6 ERD1.00-5-3.0W1.00-07

ISO: TR6 ERD1.00-5-3.0W1.00-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3344287
Delivery date: 3-5 days
$383.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Feed Milling, Round Milling, Chamfering, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.0390
Cut Dia Min 0.9210 23.39MM
Tool Material Steel
Overall Len 5.2800 134.11MM
Flutes/Inserts 5
Insert Size Ic 7
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Multi
Insert Style TR
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7006976
