  • ISCAR TR6 ERD1.00-3-3.0W1.00-10 Milling Cutter 45.0°, 90.0° 1.000 Diameter Weldon 1.000 5.280 OAL 3 Flute

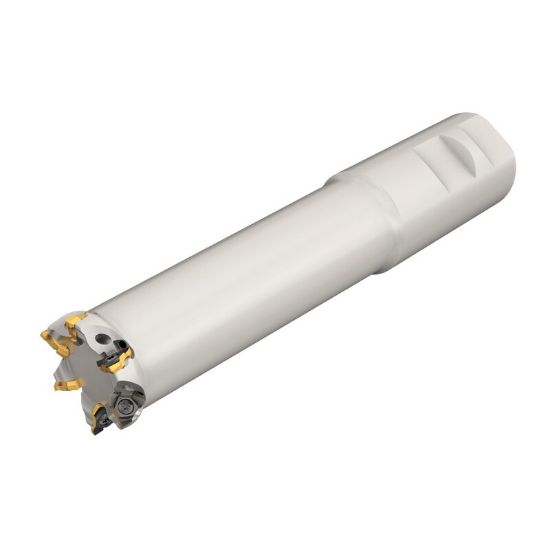

Picture of ISCAR TR6 ERD1.00-3-3.0W1.00-10 Milling Cutter 45.0°, 90.0° 1.000 Diameter Weldon 1.000 5.280 OAL 3 Flute

ISCAR TR6 ERD1.00-3-3.0W1.00-10 Milling Cutter 45.0°, 90.0° 1.000 Diameter Weldon 1.000 5.280 OAL 3 Flute

ANSI: TR6 ERD1.00-3-3.0W1.00-10

ISO: TR6 ERD1.00-3-3.0W1.00-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3344368
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Chamfering, Face Milling, Side Milling, Round Milling
Shipping State Texas
Made In USA No
Insert/Tool Tool
Insert Type Positive
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Cut Dia Min 0.8030 20.40MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Insert Size Ic 10
Tool Material Steel
Overall Len 5.2800 134.11MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.0980
Flutes/Inserts 3
Cutting & Machining Properties
Cool Sply Type External
Insert Style TR
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru No
Fasteners & Connectors
Insert Screw 7006976
