  • ISCAR TR6 ERD0.62-2-2.0W0.62-07 Milling Cutter 45.0°, 90.0° 0.625 Diameter Weldon 0.625 3.910 OAL 2 Flute

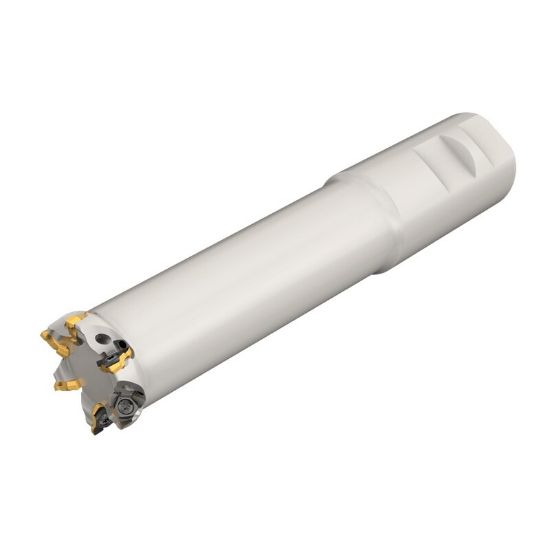

Picture of ISCAR TR6 ERD0.62-2-2.0W0.62-07 Milling Cutter 45.0°, 90.0° 0.625 Diameter Weldon 0.625 3.910 OAL 2 Flute

ISCAR TR6 ERD0.62-2-2.0W0.62-07 Milling Cutter 45.0°, 90.0° 0.625 Diameter Weldon 0.625 3.910 OAL 2 Flute

ANSI: TR6 ERD0.62-2-2.0W0.62-07

ISO: TR6 ERD0.62-2-2.0W0.62-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3344285
Delivery date: 3-5 days
$287.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Feed Milling, Chamfering, Round Milling
Package Size 1
Insert Type Positive
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.0390
Machine Side Connection Size 0.6250 15.88MM
Tool Material Steel
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Weldon
Overall Len 3.9100 99.31MM
Insert Size Ic 7
Cut Dia Min 0.5460 13.87MM
Cut Dia Max 0.6250 15.88MM - 5/8
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style TR
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru No
Fasteners & Connectors
Insert Screw 7006976
