  • ISCAR TR6 ER D35/1.38-6-M16-07 Milling Cutter 45.0°, 90.0° 1.378 Diameter Screw On M16 2.350 OAL 6 Flute

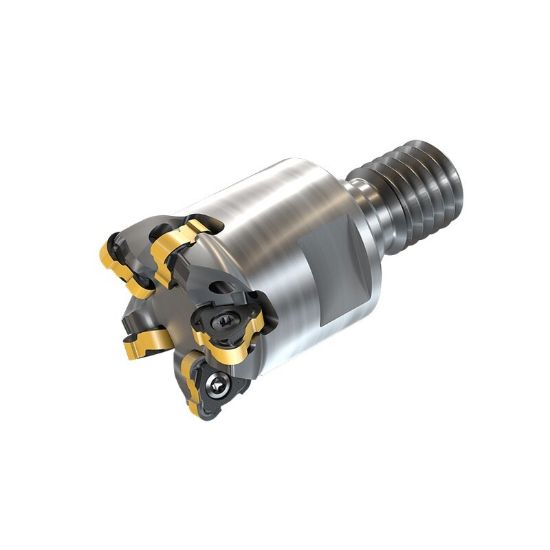

Picture of ISCAR TR6 ER D35/1.38-6-M16-07 Milling Cutter 45.0°, 90.0° 1.378 Diameter Screw On M16 2.350 OAL 6 Flute

ISCAR TR6 ER D35/1.38-6-M16-07 Milling Cutter 45.0°, 90.0° 1.378 Diameter Screw On M16 2.350 OAL 6 Flute

ANSI: TR6 ER D35/1.38-6-M16-07

ISO: TR6 ER D35/1.38-6-M16-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3320748
Delivery date: 3-5 days
$445.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Feed Milling, Chamfering, Round Milling
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.0390
Overall Len 2.3500 59.69MM
Insert Size Ic 7
Flutes/Inserts 6
Cut Dia Min 1.2990 32.99MM
Machine Side Connection Type Screw On
Cutter Dia 1.3780 35.00MM
Cut Dia Max 1.3780 35.00MM
Tool Material Steel
Machine Side Connection Size M16
Cutting & Machining Properties
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Multi
Coolant Thru No
Insert Style TR
Fasteners & Connectors
Insert Screw 7006978
