  • ISCAR TR6 ER D35/1.38-5-M16-10 Milling Cutter 45.0°, 90.0° 1.378 Diameter Screw On M16 2.362 OAL 5 Flute

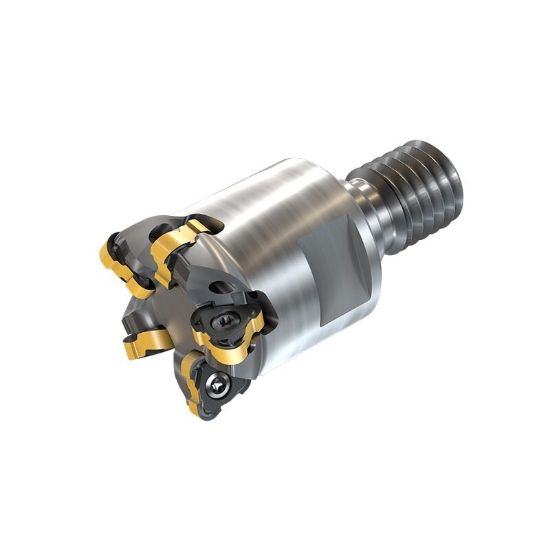

Picture of ISCAR TR6 ER D35/1.38-5-M16-10 Milling Cutter 45.0°, 90.0° 1.378 Diameter Screw On M16 2.362 OAL 5 Flute

ISCAR TR6 ER D35/1.38-5-M16-10 Milling Cutter 45.0°, 90.0° 1.378 Diameter Screw On M16 2.362 OAL 5 Flute

ANSI: TR6 ER D35/1.38-5-M16-10

ISO: TR6 ER D35/1.38-5-M16-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3320737
Delivery date: 3-5 days
$396.48

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Chamfering, Side Milling, Feed Milling, Face Milling
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Cut Dia Min 1.1810 30.00MM
Machine Side Connection Size M16
Cutter Dia 1.3780 35.00MM
Cut Dia Max 1.3780 35.00MM
Tool Material Steel
Insert Size Ic 10
Overall Len 2.3620 59.99MM
Flutes/Inserts 5
Machine Side Connection Type Screw On
Depth Of Cut Max 0.0390
Cutting & Machining Properties
Insert Style TR
Insert Shape/Cutter Pocket Shape Multi
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7006042
