  • ISCAR TR6 ER D32/1.26-4-M16-10 Milling Cutter 45.0°, 90.0° 1.260 Diameter Screw On M16 2.362 OAL 4 Flute

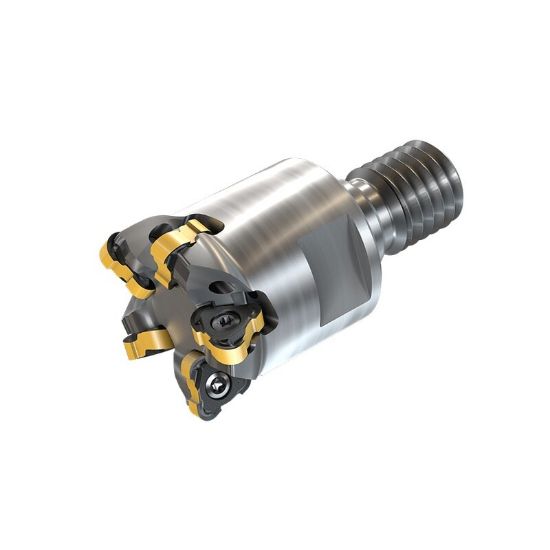

Picture of ISCAR TR6 ER D32/1.26-4-M16-10 Milling Cutter 45.0°, 90.0° 1.260 Diameter Screw On M16 2.362 OAL 4 Flute

ISCAR TR6 ER D32/1.26-4-M16-10 Milling Cutter 45.0°, 90.0° 1.260 Diameter Screw On M16 2.362 OAL 4 Flute

ANSI: TR6 ER D32/1.26-4-M16-10

ISO: TR6 ER D32/1.26-4-M16-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3344364
Delivery date: 3-5 days
$365.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Side Milling, Round Milling, Feed Milling, Chamfering, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cutter Dia 1.2600 32.00MM
Cut Dia Min 1.0630 27.00MM
Machine Side Connection Size M16
Flutes/Inserts 4
Machine Side Connection Type Screw On
Tool Material Steel
Insert Size Ic 10
Depth Of Cut Max 0.0980
Cut Dia Max 1.2600 32.00MM
Overall Len 2.3620 59.99MM
Cutting & Machining Properties
Insert Style TR
Coolant Thru No
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Multi
Fasteners & Connectors
Insert Screw 7006976
