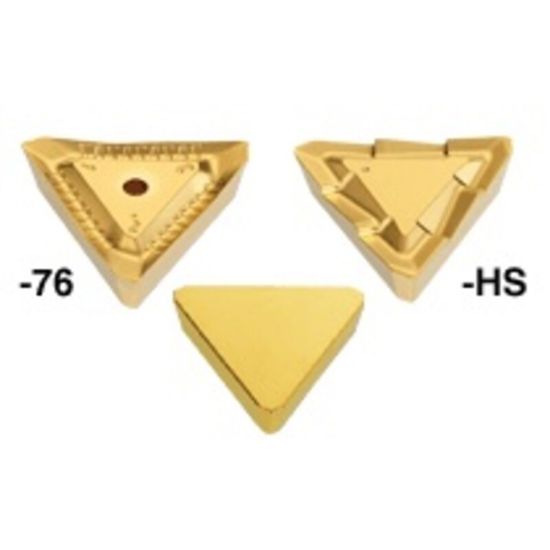

Picture of ISCAR TPK32PPTR IC30N Milling Insert Triangle Chamf Corner Radius

ISCAR TPK32PPTR IC30N Milling Insert Triangle Chamf Corner Radius

ANSI: TPK32PPTR IC30N

ISO: TPK32PPTR IC30N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5600394
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade. Provides excellent resistance to wear and plastic deformation even at high cutting speeds and medium feeds. Useful for semi finishing and finishing.

Products specifications
Attribute name Attribute value
General Product Information
Grade IC30N
Insert/Tool Insert
Application Milling Insert
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 10
Shipping State Texas
Dimensional Specifications
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Insert Size Ic 32
Cutting & Machining Properties
Insert Style TP
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Triangle
