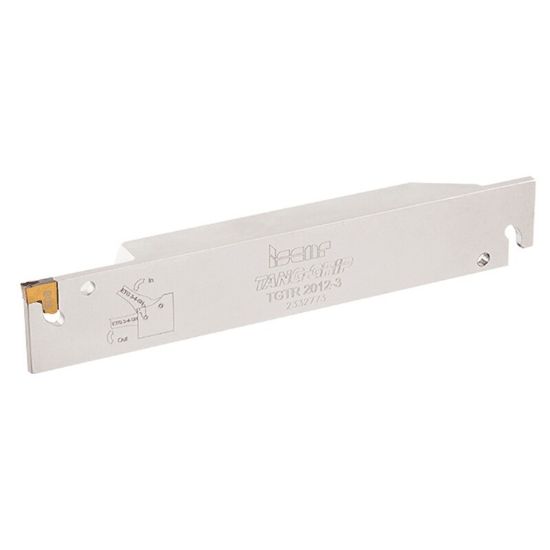

Picture of ISCAR TGTR 25.4-3-IQ-2Z Cut Off,Grooving Stick Tool 1.000 Tool

ISCAR TGTR 25.4-3-IQ-2Z Cut Off,Grooving Stick Tool 1.000 Tool

ANSI: TGTR 25.4-3-IQ-2Z

ISO: TGTR 25.4-3-IQ-2Z

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302886
Delivery date: 3-5 days
$201.60

Details

Integral shank 2 pocket tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Application General Purpose
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 3
Overall Len 5.9050 149.99MM
Cutting Width 0.1100 2.79MM
Tool Width 1.0000
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape L Shape
Insert Style TA
Inter/Extern External
Hand R/L Right
