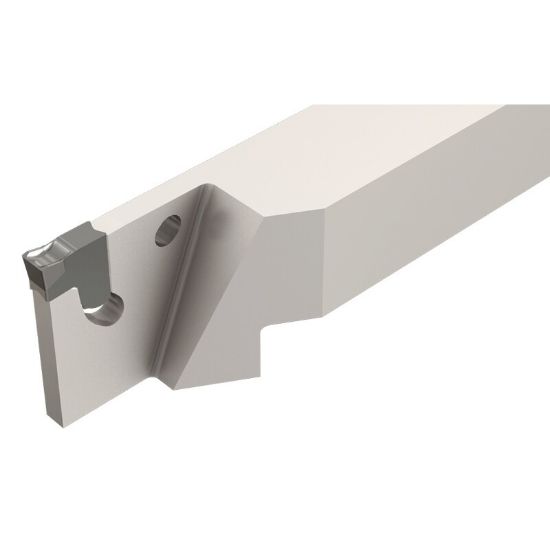

Picture of ISCAR TGTR 19-2-IQ Cut Off,Grooving Stick Tool 0.750 Tool

ISCAR TGTR 19-2-IQ Cut Off,Grooving Stick Tool 0.750 Tool

ANSI: TGTR 19-2-IQ

ISO: TGTR 19-2-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301903
Delivery date: 3-5 days
$164.16

Details

Integral shank tools with a very rigid clamping. Enables machining at very high feeds and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Shipping State Texas
Dimensional Specifications
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Overall Len 5.9050 149.99MM
Cutting Width 0.0710 1.80MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style TA
Inter/Extern External
Hand R/L Right
Insert Shape/Cutter Pocket Shape L Shape
