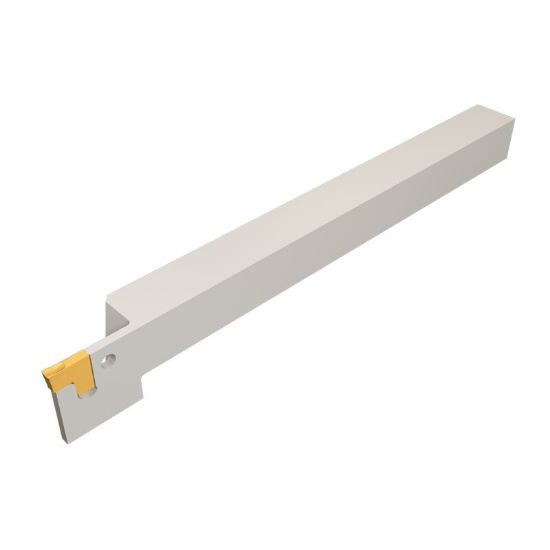

Picture of ISCAR TGTR 1010-2T10SH-L120-IQ Cut Off,Grooving Stick Tool 0.393 Tool

ISCAR TGTR 1010-2T10SH-L120-IQ Cut Off,Grooving Stick Tool 0.393 Tool

ANSI: TGTR 1010-2T10SH-L120-IQ

ISO: TGTR 1010-2T10SH-L120-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302338
Delivery date: 3-5 days
$135.36

Details

Integral shank tools with a very rigid clamping. Enables machining at very high feeds and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Width 0.3940
Shank/Pilot Dia 0.3937 10.00MM
Cutting Width 0.0710 1.80MM
Depth Of Cut Max 0.3940
Overall Len 4.7240 119.99MM
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Insert Size Ic 2
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape L Shape
Hand R/L Right
Insert Style TA
Inter/Extern External
