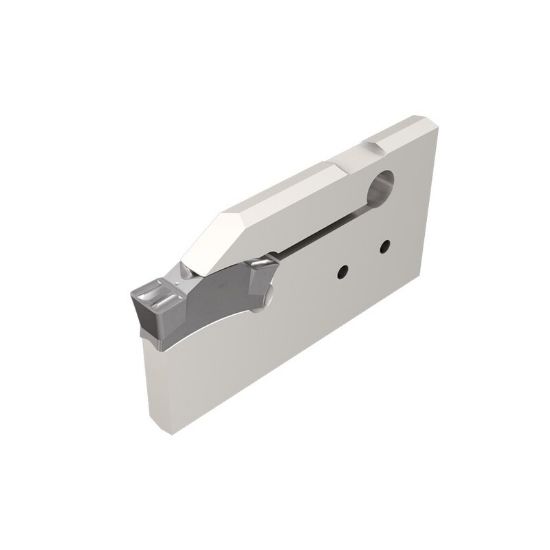

ISCAR TGHN 32-5S Cut Off,Grooving,Groove Turning Blade 1.260 Tool

Name: ISCAR TGHN 32-5S Cut Off,Grooving,Groove Turning Blade 1.260 Tool
SKU: ISC2850048
Availability: InStock

ANSI: TGHN 32-5S

ISO: TGHN 32-5S

Manufacturer: ISCAR

SKU: ISC2850048

Delivery date: 3-5 days

Call (262) 251-4020 for pricing

Qty:

Details

Single-ended blades carrying TOP-GRIP utility grooving and turning inserts.

Use the drilled holes on blade for min. and max. overhang Grooving depth is limited by the insert

Products specifications

Attribute name	Attribute value
General Product Information
Insert/Tool	Tool
Application	Ext.Grooving, Parting, Ext.Groove Turning
Insert Application	General Purpose
Made In USA	No
Insert Type	Positive
Package Size	1
Shipping State	Texas
Dimensional Specifications
Overall Len	2.1260 54.00MM
Insert Size Ic	5
Cutting Width	0.1970 5.00MM
Tool Material	Steel
Machine Side Connection Type	Blade
Machine Side Connection Size	1.2598 32.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape	Dog Bone
Insert Style	TG
