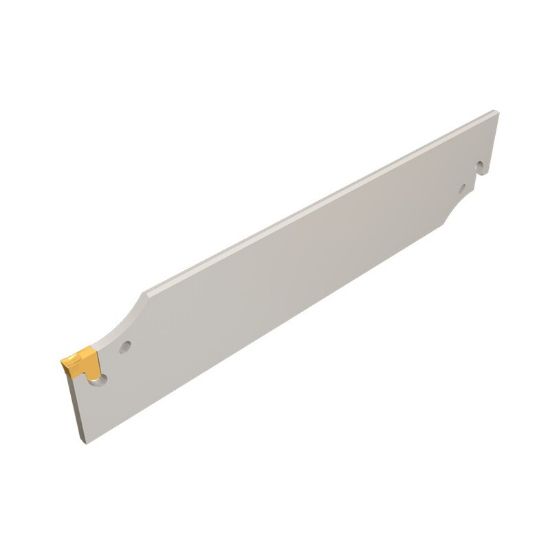

Picture of ISCAR TGFHR 53K-12 Cut Off,Grooving Blade 2.071 Tool

ISCAR TGFHR 53K-12 Cut Off,Grooving Blade 2.071 Tool

ANSI: TGFHR 53K-12

ISO: TGFHR 53K-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302294
Delivery date: 3-5 days
$404.16

Details

Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting large diameter parts and for interrupted cuts. Excellent tool and pocket life.

For TGFH ..C-. and for TGFH 100-9 drawings, click "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Application General Purpose
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Cutting Width 0.4610 11.71MM
Tool Material Steel
Machine Side Connection Type Blade
Insert Size Ic 12
Machine Side Connection Size 2.0710 52.60MM
Overall Len 10.2360 259.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape L Shape
Hand R/L Right
Insert Style TA
