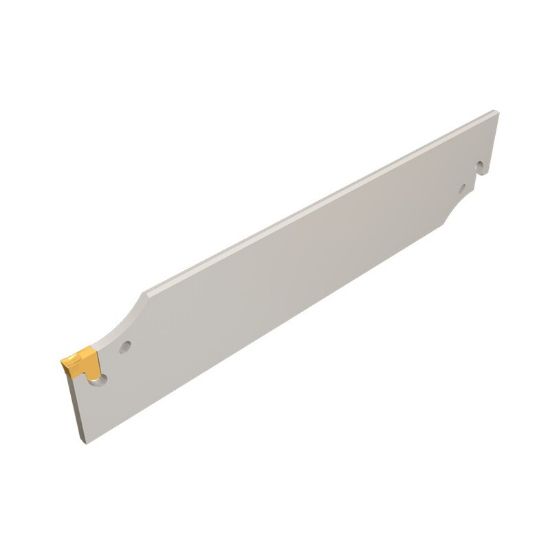

ISCAR TGFH 32-7 Cut Off,Grooving Blade 1.260 Tool

ANSI: TGFH 32-7

ISO: TGFH 32-7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302226
Delivery date: 3-5 days
$136.32

Details

Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting large diameter parts and for interrupted cuts. Excellent tool and pocket life.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Type Positive
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Overall Len 5.8270 148.01MM
Insert Size Ic 7
Cutting Width 0.2680 6.81MM
Tool Material Steel
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Insert Style TA
Insert Shape/Cutter Pocket Shape L Shape
Hand R/L Neutral
