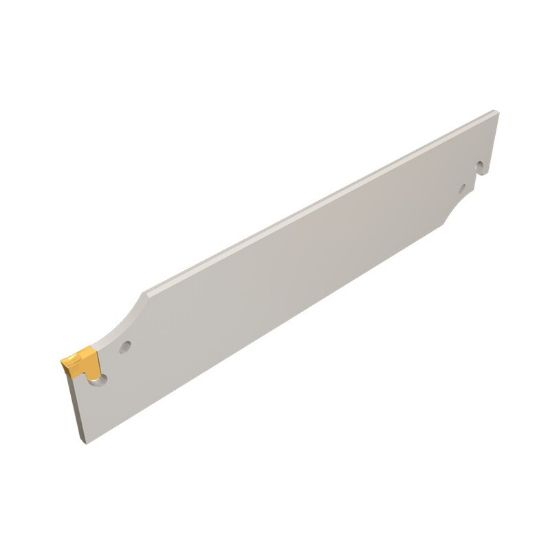

Picture of ISCAR TGFH 32-1.4 Cut Off,Grooving Blade 1.260 Tool

ISCAR TGFH 32-1.4 Cut Off,Grooving Blade 1.260 Tool

ANSI: TGFH 32-1.4

ISO: TGFH 32-1.4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302277
Delivery date: 3-5 days
$136.32

Details

Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting large diameter parts and for interrupted cuts. Excellent tool and pocket life.

For TGFH ..C-. and for TGFH 100-9 drawings, click "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Type Positive
Dimensional Specifications
Cutting Width 0.0550 1.40MM
Insert Size Ic 1.4
Overall Len 5.9060 150.01MM
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape L Shape
Hand R/L Neutral
Insert Style TA
