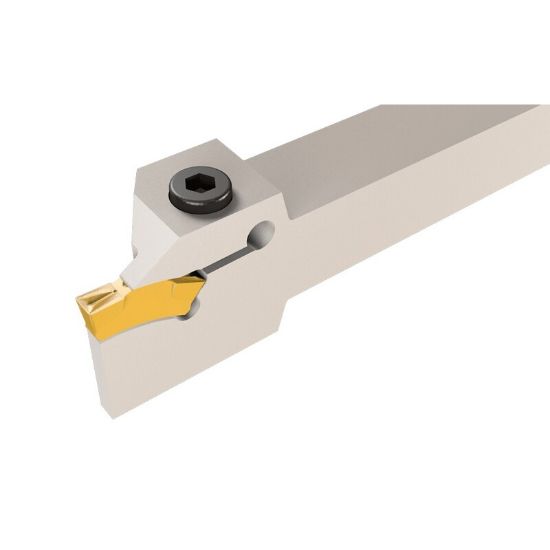

Picture of ISCAR TGDR 25.4-6M Grooving,Groove Turning Stick Tool 1.000 Tool

ISCAR TGDR 25.4-6M Grooving,Groove Turning Stick Tool 1.000 Tool

ANSI: TGDR 25.4-6M

ISO: TGDR 25.4-6M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2850110
Delivery date: 3-5 days
$182.40

Important Notes

To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional).

Details

Holders for TOP-GRIP utility grooving and turning inserts.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Groove Turning, Ext.Grooving
Shipping State Texas
Insert Type Positive
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Cutting Width 0.2360 5.99MM
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.8600
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 6
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style TG
