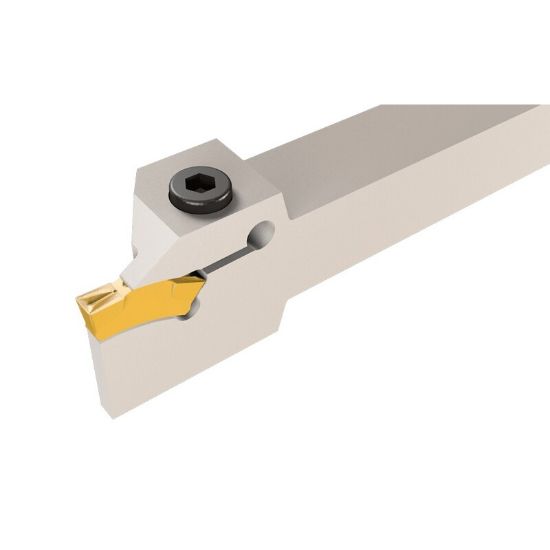

Picture of ISCAR TGDR 25.4-5M Grooving,Groove Turning Stick Tool 1.000 Tool

ISCAR TGDR 25.4-5M Grooving,Groove Turning Stick Tool 1.000 Tool

ANSI: TGDR 25.4-5M

ISO: TGDR 25.4-5M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2850109
Delivery date: 3-5 days
$182.40

Important Notes

To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional).

Details

Holders for TOP-GRIP utility grooving and turning inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Application Ext.Groove Turning, Ext.Grooving
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.7000
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.5000 139.70MM
Machine Side Connection Size 1.0000 25.40MM
Cutting Width 0.2000 5.08MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style TG
