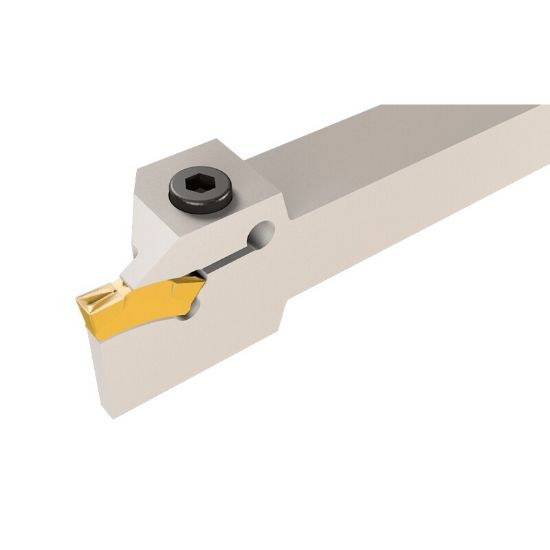

Picture of ISCAR TGDL 25.4-6M Grooving,Groove Turning Stick Tool 1.000 Tool

ISCAR TGDL 25.4-6M Grooving,Groove Turning Stick Tool 1.000 Tool

ANSI: TGDL 25.4-6M

ISO: TGDL 25.4-6M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2850118
Delivery date: 3-5 days
$182.40

Important Notes

To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional).

Details

Holders for TOP-GRIP utility grooving and turning inserts.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Groove Turning, Ext.Grooving
Insert Type Positive
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Texas
Dimensional Specifications
Cutting Width 0.2360 5.99MM
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 6
Depth Of Cut Max 0.8600
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style TG
