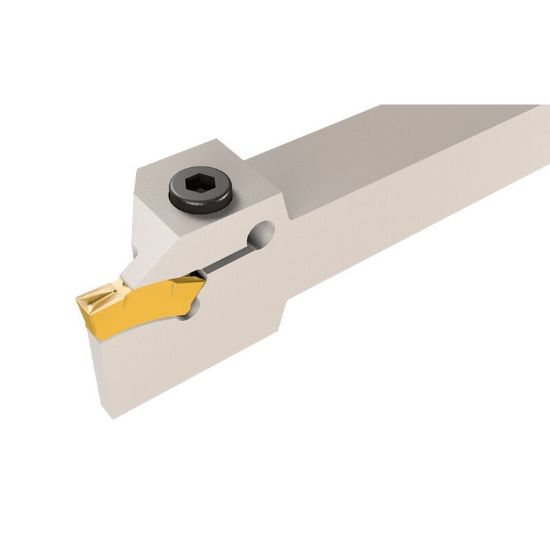

Picture of ISCAR TGDL 19-4M Grooving,Groove Turning Stick Tool 0.750 Tool

ISCAR TGDL 19-4M Grooving,Groove Turning Stick Tool 0.750 Tool

ANSI: TGDL 19-4M

ISO: TGDL 19-4M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2850114
Delivery date: 3-5 days
$169.92

Important Notes

To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional).

Details

Holders for TOP-GRIP utility grooving and turning inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Shipping State Texas
Made In USA No
Insert Application General Purpose
Insert/Tool Tool
Application Ext.Grooving, Ext.Groove Turning
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting Width 0.1570 3.99MM
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Depth Of Cut Max 0.3540
Machine Side Connection Size 0.7500 19.05MM
Overall Len 5.0000 127.00MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style TG
