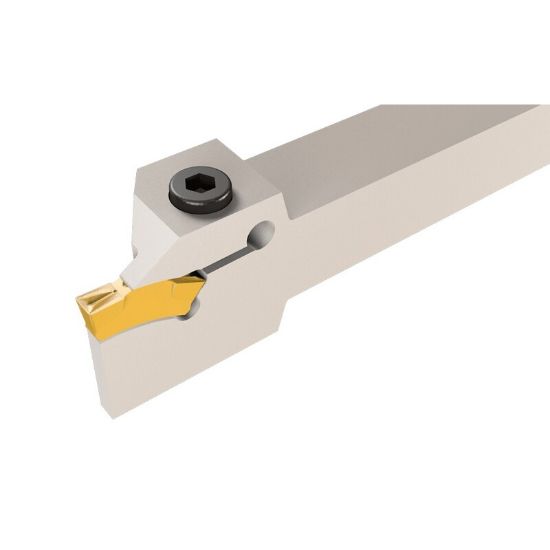

Picture of ISCAR TGDL 19-3M Grooving,Groove Turning Stick Tool 0.750 Tool

ISCAR TGDL 19-3M Grooving,Groove Turning Stick Tool 0.750 Tool

ANSI: TGDL 19-3M

ISO: TGDL 19-3M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2850113
Delivery date: 3-5 days
$169.92

Important Notes

To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional).

Details

Holders for TOP-GRIP utility grooving and turning inserts.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Type Positive
Application Ext.Grooving, Ext.Groove Turning
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Dimensional Specifications
Insert Size Ic 3
Depth Of Cut Max 0.2900
Machine Side Connection Size 0.7500 19.05MM
Overall Len 5.0000 127.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting Width 0.1180 3.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style TG
Inter/Extern External
