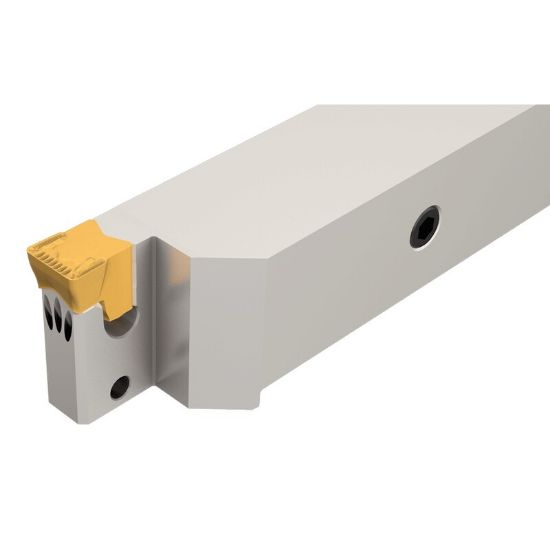

Picture of ISCAR TGBHL 38.1C-14T40 Grooving Stick Tool 1.500 Tool

ISCAR TGBHL 38.1C-14T40 Grooving Stick Tool 1.500 Tool

ANSI: TGBHL 38.1C-14T40

ISO: TGBHL 38.1C-14T40

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801952
Delivery date: 3-5 days
$380.16

Important Notes

The tools for the .551" inserts feature a 1/8" port thread for standard tube fittings

Details

SUMO-GRIP tools with very rigid clamping. Recommended for grooving, turning and parting at very high feed rates and interrupted cuts. Excellent tool and pocket life.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Application Ext.Groove Turning, Ext.Grooving
Made In USA No
Insert/Tool Tool
Package Size 1
Shipping State Texas
Dimensional Specifications
Insert Size Ic 14
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Type Stick Tool
Depth Of Cut Max 1.5750
Overall Len 6.7000 170.18MM
Cutting Width 0.5100 12.95MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape L Shape
Insert Style TA
Inter/Extern External
