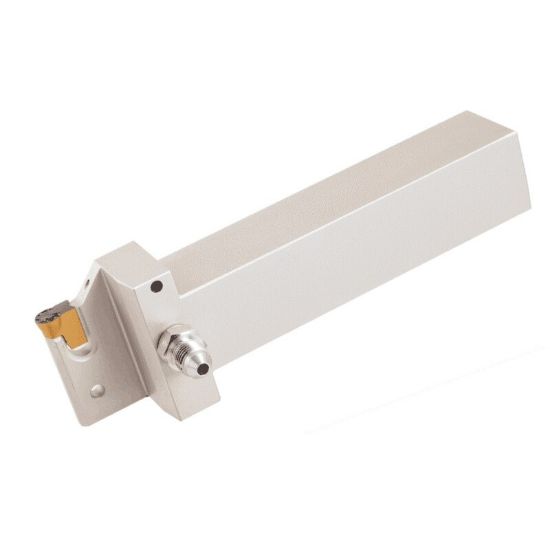

Picture of ISCAR TGBHL 25.4-8-JHP Grooving Stick Tool 1.000 Tool

ISCAR TGBHL 25.4-8-JHP Grooving Stick Tool 1.000 Tool

ANSI: TGBHL 25.4-8-JHP

ISO: TGBHL 25.4-8-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801810
Delivery date: 3-5 days
$384.96

SUMO-GRIP tools with channels for high pressure coolant and very rigid clamping. Recommended for grooving, turning and parting at very high feed rates and interrupted cuts. Excellent tool and pocket life.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Grooving, Ext.Groove Turning
Insert Application General Purpose
Made In USA No
Shipping State Texas
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutting Width 0.3150 8.00MM
Overall Len 6.0000 152.40MM
Insert Size Ic 8
Depth Of Cut Max 0.9800
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape L Shape
Insert Style TA
Inter/Extern External
