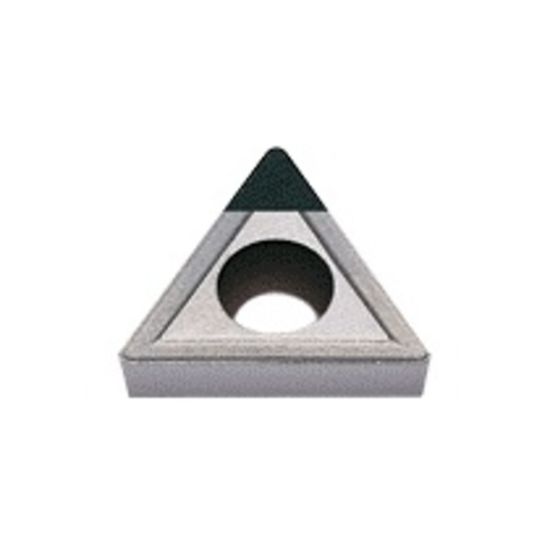

Picture of ISCAR TCMT2-1T IB50 Turning Insert Triangle CBN 0.016 Corner Radius

ISCAR TCMT2-1T IB50 Turning Insert Triangle CBN 0.016 Corner Radius

ANSI: TCMT2-1T IB50

ISO: TCMT110204 T IB50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5700444
Delivery date: 3-5 days
$57.45

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

Triangular Positive Inserts with a Single CBN Flat Rake Tip for Machining Hardened Steel

Grade and Coating Description

A 50% CBN brazed tip, used for finishing hardened steel (45-65 HRC) and nodular cast iron in continuous cutting.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert Type Positive
Grade IB50
Application Turning Insert
Package Size 10
Made In USA No
Shipping State Texas
Insert/Tool Insert
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Cut Rating <53HRC Steel, Gray Iron
Insert Size Ic 11 "21"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat CBN
Insert Style TC
