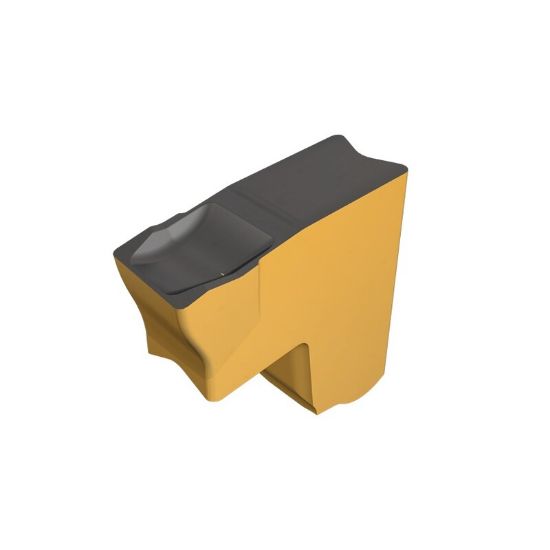

ISCAR TAG R3C-8D IC30N Cut Off Insert 0.008 Corner Radius 0.118 Wide

ANSI: TAG R3C-8D IC30N

ISO: TAG R3C-8D IC30N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6004533
Delivery date: 3-5 days
$12.19

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Single-Ended Inserts for Parting Bars, Hard Materials and Tough Parting Applications

Grade and Coating Description

Cermet grade. Provides excellent resistance to wear and plastic deformation even at high cutting speeds and medium feeds. Useful for semi finishing and finishing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert/Tool Insert
Insert Type Positive
Application Grooving & Parting Insert
Shipping State Texas
Package Size 10
Grade IC30N
Dimensional Specifications
Cutting Width 0.1180 3.00MM
Corner Radius 0.0080 0.20MM
Cut Rating <48HRC Steel, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape L Shape
Cutting Edge Mat Cermet
