  • ISCAR T890HT FLND5.0-15-1.5-R13 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 15 Flute

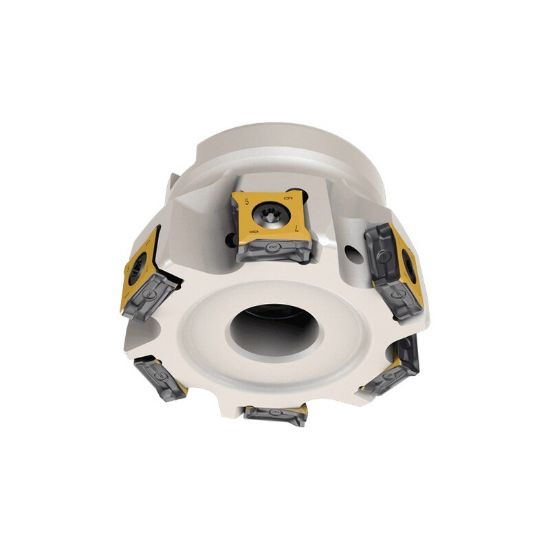

Picture of ISCAR T890HT FLND5.0-15-1.5-R13 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 15 Flute

ISCAR T890HT FLND5.0-15-1.5-R13 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 15 Flute

ANSI: T890HT FLND5.0-15-1.5-R13

ISO: T890HT FLND5.0-15-1.5-R13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3332806
Delivery date: 3-5 days
$1,526.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Application Face Milling, Side Milling
Insert/Tool Tool
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Cut Dia Min 5.0000 127.00MM
Insert Size Ic 13
Cutter Dia 5.0000 127.00MM
Cut Dia Max 5.0000 127.00MM
Tool Material Steel
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.3740
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Flutes/Inserts 15
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7006977
