  • ISCAR T890HT FLND3.0-09-1.0-R13 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 9 Flute

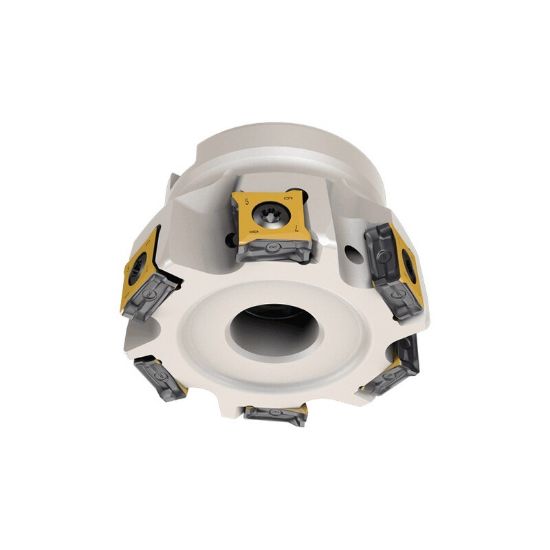

Picture of ISCAR T890HT FLND3.0-09-1.0-R13 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 9 Flute

ISCAR T890HT FLND3.0-09-1.0-R13 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 9 Flute

ANSI: T890HT FLND3.0-09-1.0-R13

ISO: T890HT FLND3.0-09-1.0-R13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3332802
Delivery date: 3-5 days
$969.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 9
Cut Dia Max 3.0000 76.20MM
Depth Of Cut Max 0.3740
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Tool Material Steel
Insert Size Ic 13
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 3331146
