  • ISCAR T890HT FLND2.5-08-1.0-R13 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 8 Flute

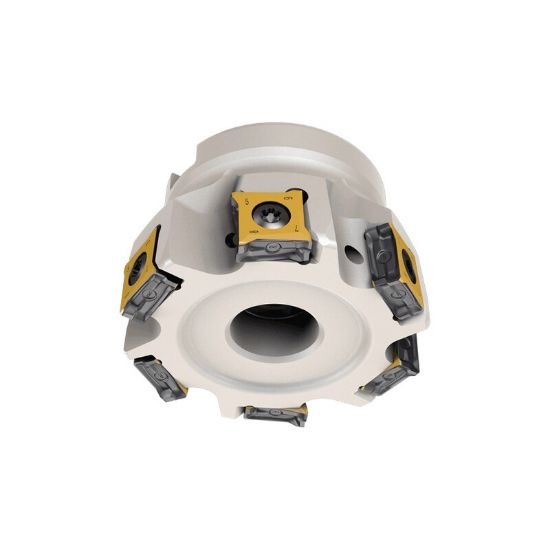

Picture of ISCAR T890HT FLND2.5-08-1.0-R13 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 8 Flute

ISCAR T890HT FLND2.5-08-1.0-R13 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 8 Flute

ANSI: T890HT FLND2.5-08-1.0-R13

ISO: T890HT FLND2.5-08-1.0-R13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3332799
Delivery date: 3-5 days
$775.68

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Application Face Milling, Side Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Flutes/Inserts 8
Tool Material Steel
Cutter Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 13
Overall Len 1.7500 44.45MM
Depth Of Cut Max 0.3740
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Style LN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 3331146
