  • ISCAR T890HT FLND2.0-05-.75-R13 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.574 OAL 5 Flute

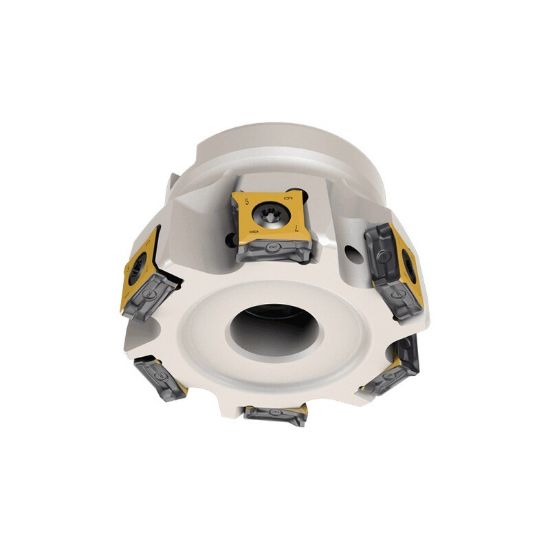

Picture of ISCAR T890HT FLND2.0-05-.75-R13 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.574 OAL 5 Flute

ISCAR T890HT FLND2.0-05-.75-R13 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.574 OAL 5 Flute

ANSI: T890HT FLND2.0-05-.75-R13

ISO: T890HT FLND2.0-05-.75-R13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3332794
Delivery date: 3-5 days
$624.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Overall Len 1.5740 39.98MM
Insert Size Ic 13
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Depth Of Cut Max 0.3740
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Style LN
Fasteners & Connectors
Insert Screw 3331146
