  • ISCAR T890HT FLND2.0-04-.75-R13 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.574 OAL 4 Flute

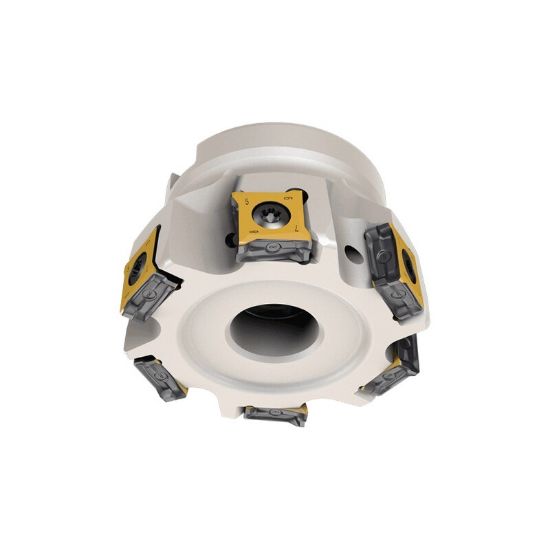

Picture of ISCAR T890HT FLND2.0-04-.75-R13 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.574 OAL 4 Flute

ISCAR T890HT FLND2.0-04-.75-R13 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.574 OAL 4 Flute

ANSI: T890HT FLND2.0-04-.75-R13

ISO: T890HT FLND2.0-04-.75-R13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3332793
Delivery date: 3-5 days
$594.24

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Face Milling, Side Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 13
Flutes/Inserts 4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5740 39.98MM
Cutter Dia 2.0000 50.80MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Depth Of Cut Max 0.3740
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 3331146
