  • ISCAR T890HT FLND1.5-03-.75-R13 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.574 OAL 3 Flute

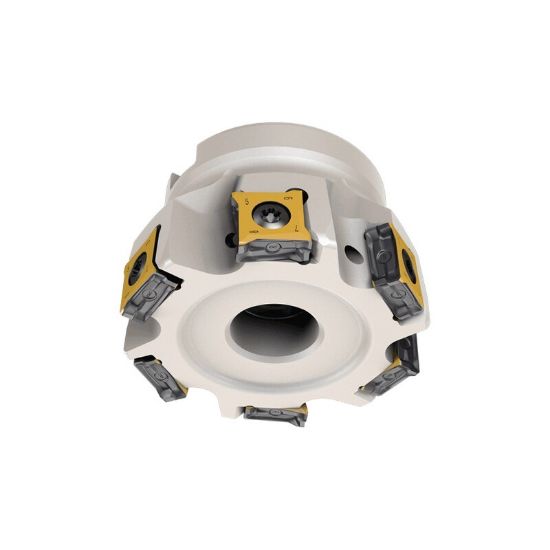

Picture of ISCAR T890HT FLND1.5-03-.75-R13 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.574 OAL 3 Flute

ISCAR T890HT FLND1.5-03-.75-R13 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.574 OAL 3 Flute

ANSI: T890HT FLND1.5-03-.75-R13

ISO: T890HT FLND1.5-03-.75-R13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3332789
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Application Face Milling, Side Milling
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3740
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Tool Material Steel
Insert Size Ic 13
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Overall Len 1.5740 39.98MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Style LN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 3331146
