  • ISCAR T490 SMD50-47-2-25.4-13FT Milling Cutter 90.0°, Corn Cob 1.968 Diameter Face Mill 1.000 2.618 OAL 8 Flute

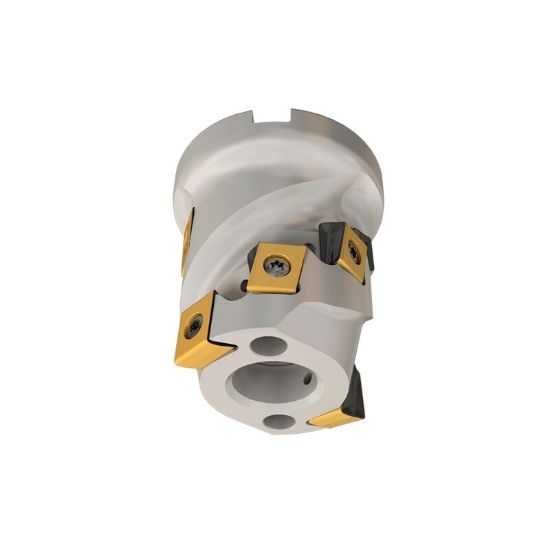

Picture of ISCAR T490 SMD50-47-2-25.4-13FT Milling Cutter 90.0°, Corn Cob 1.968 Diameter Face Mill 1.000 2.618 OAL 8 Flute

ISCAR T490 SMD50-47-2-25.4-13FT Milling Cutter 90.0°, Corn Cob 1.968 Diameter Face Mill 1.000 2.618 OAL 8 Flute

ANSI: T490 SMD50-47-2-25.4-13FT

ISO: T490 SMD50-47-2-25.4-13FT

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105960
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Negative
Insert/Tool Tool
Application Long Edge Milling, Side Milling
Package Size 1
Insert Application Roughing
Made In USA No
Dimensional Specifications
Depth Of Cut Max 2.3200
Machine Side Connection Size 1.0000 25.40MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.6180 66.50MM
Insert Size Ic 13
Cut Dia Min 1.9680 49.99MM
Flutes/Inserts 8
Cutter Dia 1.9680 49.99MM
Cutting & Machining Properties
Insert Style SM
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 4390045
