  • ISCAR T490 SM-D3.0-32-5-1.25-13 Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 4.000 OAL 35 Flute

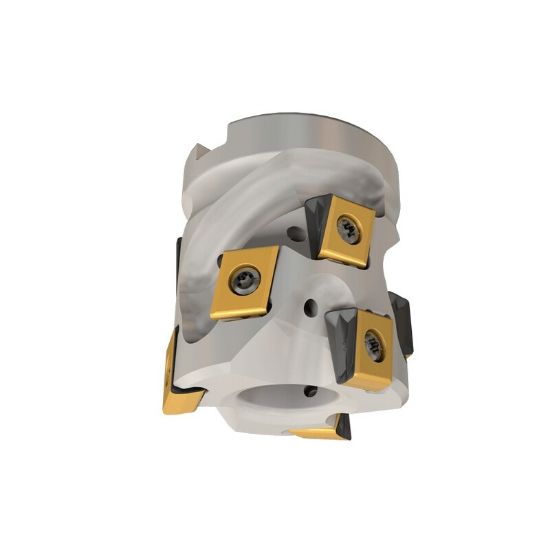

Picture of ISCAR T490 SM-D3.0-32-5-1.25-13 Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 4.000 OAL 35 Flute

ISCAR T490 SM-D3.0-32-5-1.25-13 Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 4.000 OAL 35 Flute

ANSI: T490 SM-D3.0-32-5-1.25-13

ISO: T490 SM-D3.0-32-5-1.25-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3135261
Delivery date: 3-5 days
$2,179.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing
Made In USA No
Application Long Edge Milling, Side Milling
Package Size 1
Shipping State Texas
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 13
Cutter Dia 3.0000 76.20MM
Flutes/Inserts 35
Depth Of Cut Max 0.4720
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Insert Style SM
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000216
