  • ISCAR T490 SM-D2.5-14-4-1.0-13 Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 1.000 2.362 OAL 12 Flute

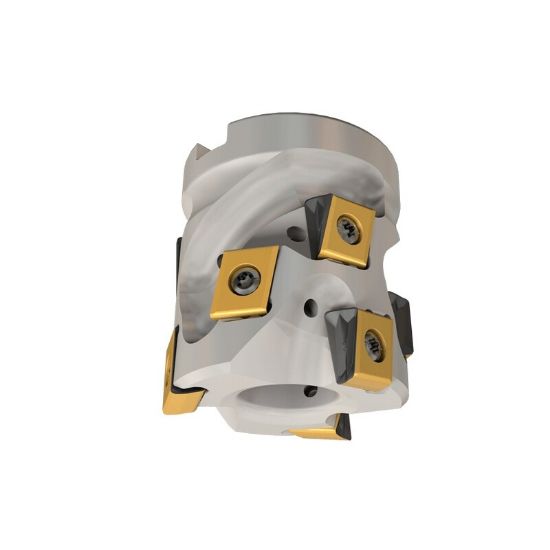

Picture of ISCAR T490 SM-D2.5-14-4-1.0-13 Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 1.000 2.362 OAL 12 Flute

ISCAR T490 SM-D2.5-14-4-1.0-13 Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 1.000 2.362 OAL 12 Flute

ANSI: T490 SM-D2.5-14-4-1.0-13

ISO: T490 SM-D2.5-14-4-1.0-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105094
Delivery date: 3-5 days
$1,104.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing
Made In USA No
Shipping State Texas
Application Side Milling, Long Edge Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 1.4100
Cutter Dia 2.5000 63.50MM - 2-1/2
Overall Len 2.3620 59.99MM
Flutes/Inserts 12
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 13
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 7000000
