  • ISCAR T490 SM-D2.0-18-4-1.0-13 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Face Mill 0.875 2.700 OAL 16 Flute

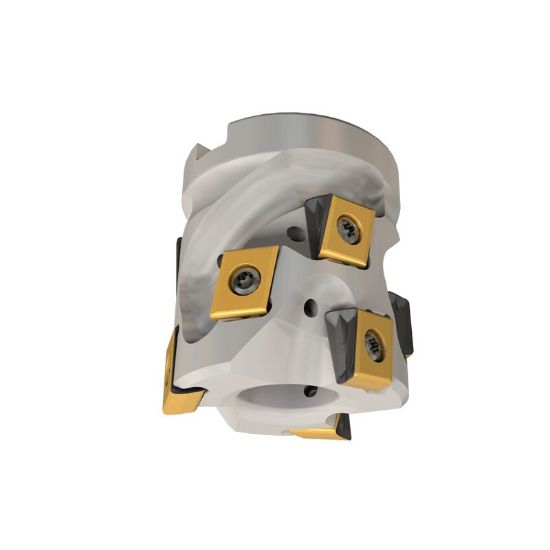

Picture of ISCAR T490 SM-D2.0-18-4-1.0-13 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Face Mill 0.875 2.700 OAL 16 Flute

ISCAR T490 SM-D2.0-18-4-1.0-13 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Face Mill 0.875 2.700 OAL 16 Flute

ANSI: T490 SM-D2.0-18-4-1.0-13

ISO: T490 SM-D2.0-18-4-1.0-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105093
Delivery date: 3-5 days
$832.32

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing
Made In USA No
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 1.8700
Machine Side Connection Size 0.8750 22.23MM
Overall Len 2.7000 68.58MM
Insert Size Ic 13
Flutes/Inserts 16
Tool Material Steel
Cut Dia Min 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style LN
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 7000000
