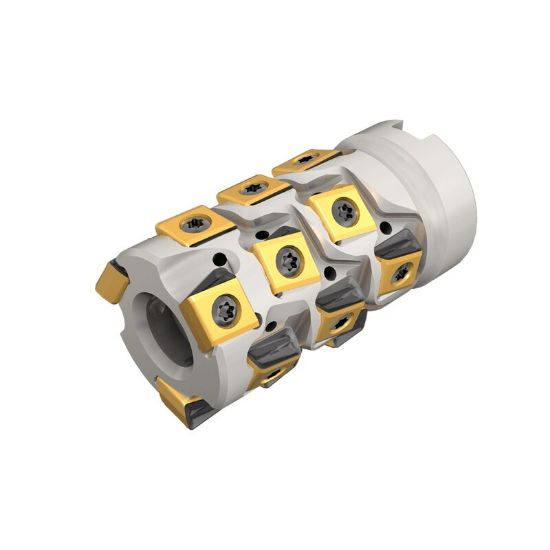

ISCAR T490 SM-D1.50-2-3-.75-11 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Face Mill 0.750 2.800 OAL 18 Flute

ANSI: T490 SM-D1.50-2-3-.75-11

ISO: T490 SM-D1.50-2-3-.75-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107174
Delivery date: 3-5 days
$852.48

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing
Made In USA No
Application Side Milling, Long Edge Milling
Shipping State Texas
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Overall Len 2.8000 71.12MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 2.3500
Cutter Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 11
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Flutes/Inserts 18
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Insert Style LN
Fasteners & Connectors
Insert Screw 4390045
