  • ISCAR T490 SM-D1.5-14-2-.75-13 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Face Mill 0.750 2.440 OAL 6 Flute

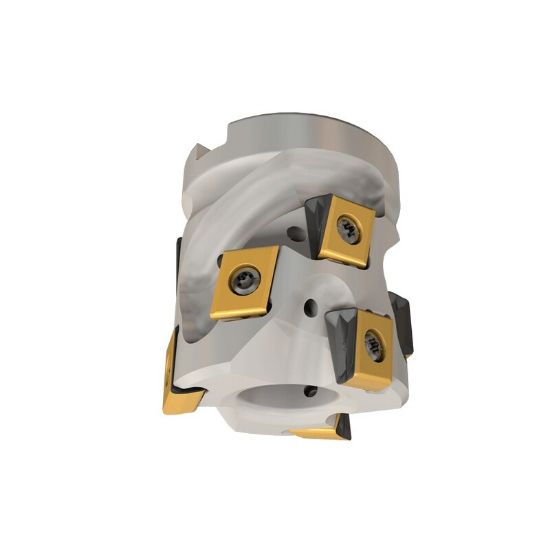

Picture of ISCAR T490 SM-D1.5-14-2-.75-13 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Face Mill 0.750 2.440 OAL 6 Flute

ISCAR T490 SM-D1.5-14-2-.75-13 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Face Mill 0.750 2.440 OAL 6 Flute

ANSI: T490 SM-D1.5-14-2-.75-13

ISO: T490 SM-D1.5-14-2-.75-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181022
Delivery date: 3-5 days
$617.28

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Application Long Edge Milling, Side Milling
Package Size 1
Insert Type Negative
Insert Application Roughing
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.3900
Flutes/Inserts 6
Cutter Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 13
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.4400 61.98MM
Cutting & Machining Properties
Insert Style SM
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 7006264
