  • ISCAR T490 LNKD50-47-3L100C6-13 Milling Cutter 90.0°, Corn Cob 1.968 Diameter PSC "Capto Type" 2.362 5.433 OAL 12 Flute

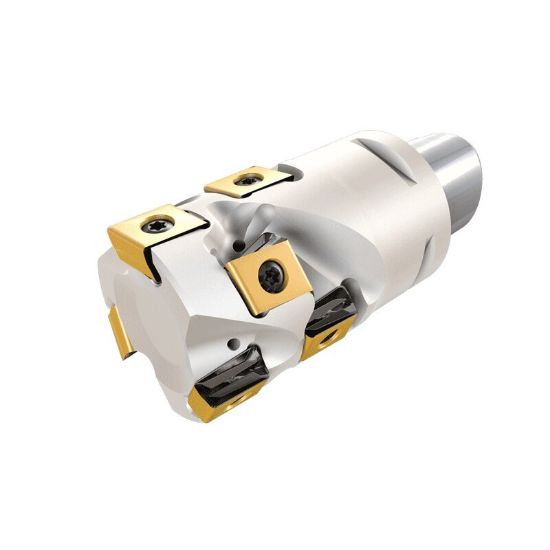

Picture of ISCAR T490 LNKD50-47-3L100C6-13 Milling Cutter 90.0°, Corn Cob 1.968 Diameter PSC "Capto Type" 2.362 5.433 OAL 12 Flute

ISCAR T490 LNKD50-47-3L100C6-13 Milling Cutter 90.0°, Corn Cob 1.968 Diameter PSC "Capto Type" 2.362 5.433 OAL 12 Flute

ANSI: T490 LNKD50-47-3L100C6-13

ISO: T490 LNKD50-47-3L100C6-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105778
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Long Edge Milling, Side Milling
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing
Made In USA No
Dimensional Specifications
Insert Size Ic 13
Machine Side Connection Type PSC "Capt0 Type"
Overall Len 5.4330 138.00MM
Cut Dia Min 1.9680 49.99MM
Tool Material Steel
Flutes/Inserts 12
Machine Side Connection Size 2.3622 60.00MM
Shank/Pilot Dia 2.3622 60.00MM
Cutter Dia 1.9680 49.99MM
Depth Of Cut Max 0.4920
Cutting & Machining Properties
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000000
