  • ISCAR T490 FLND8.00-15-2.5-R-13 Milling Cutter 90.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 15 Flute

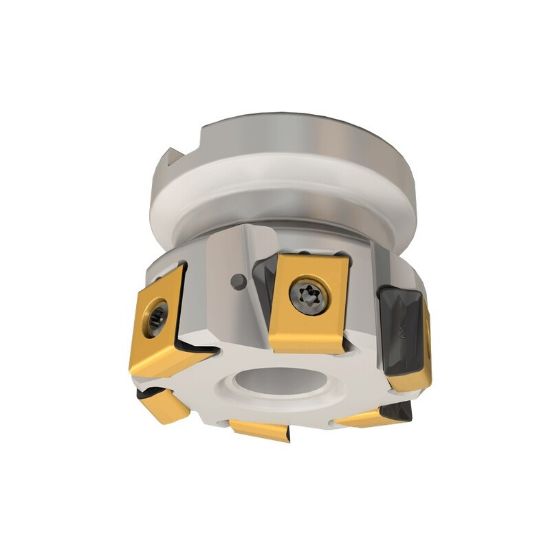

Picture of ISCAR T490 FLND8.00-15-2.5-R-13 Milling Cutter 90.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 15 Flute

ISCAR T490 FLND8.00-15-2.5-R-13 Milling Cutter 90.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 15 Flute

ANSI: T490 FLND8.00-15-2.5-R-13

ISO: T490 FLND8.00-15-2.5-R-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106278
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Size 2.5000 63.50MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 8.0000 203.20MM
Cut Dia Min 8.0000 203.20MM
Cut Dia Max 8.0000 203.20MM
Insert Size Ic 13
Depth Of Cut Max 0.4920
Overall Len 2.5000 63.50MM
Flutes/Inserts 15
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Style LN
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 7002024
