  • ISCAR T490 FLND6.00-10-2.0-R-16 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.000 OAL 10 Flute

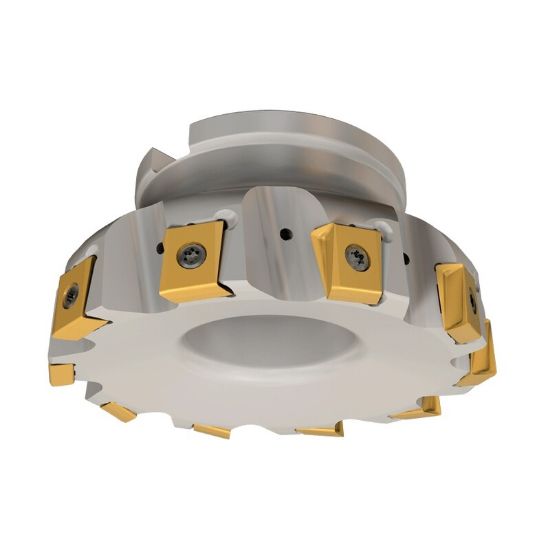

Picture of ISCAR T490 FLND6.00-10-2.0-R-16 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.000 OAL 10 Flute

ISCAR T490 FLND6.00-10-2.0-R-16 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.000 OAL 10 Flute

ANSI: T490 FLND6.00-10-2.0-R-16

ISO: T490 FLND6.00-10-2.0-R-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106362
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Cutter Dia 6.0000 152.40MM
Cut Dia Max 6.0000 152.40MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 10
Depth Of Cut Max 0.1970
Tool Material Steel
Overall Len 2.0000 50.80MM
Cut Dia Min 6.0000 152.40MM
Insert Size Ic 16
Machine Side Connection Size 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7003394
