  • ISCAR T490 FLND4.00-08-1.5-R-11 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

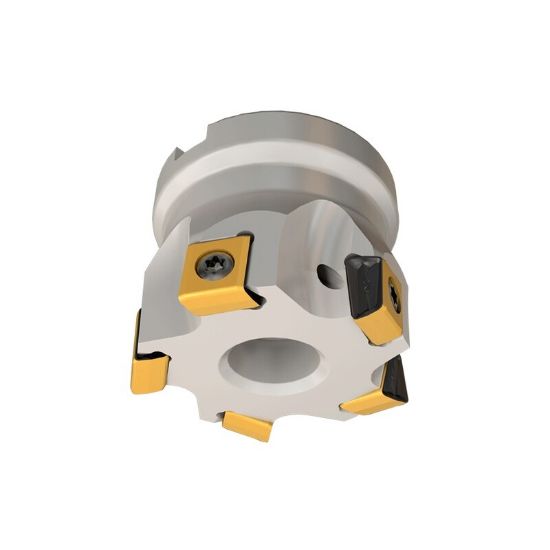

Picture of ISCAR T490 FLND4.00-08-1.5-R-11 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ISCAR T490 FLND4.00-08-1.5-R-11 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ANSI: T490 FLND4.00-08-1.5-R-11

ISO: T490 FLND4.00-08-1.5-R-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107166
Delivery date: 3-5 days
$979.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.0000 50.80MM
Insert Size Ic 11
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.0000 101.60MM
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.3500
Flutes/Inserts 8
Cut Dia Max 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 4390045
