  • ISCAR T490 FLND2.50-09-1.0-R-11 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

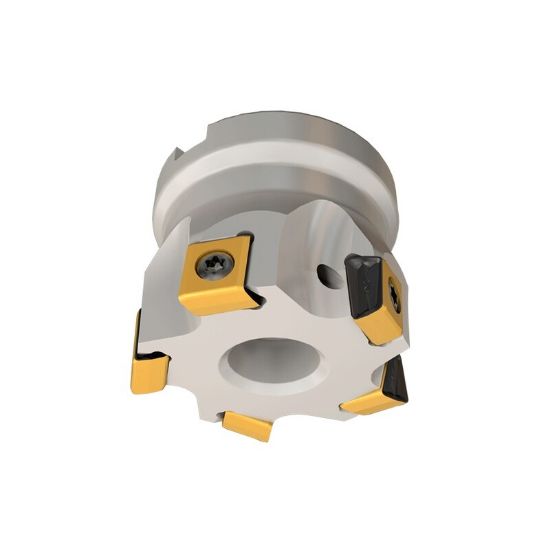

Picture of ISCAR T490 FLND2.50-09-1.0-R-11 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

ISCAR T490 FLND2.50-09-1.0-R-11 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

ANSI: T490 FLND2.50-09-1.0-R-11

ISO: T490 FLND2.50-09-1.0-R-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107163
Delivery date: 3-5 days
$795.84
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.3500
Overall Len 1.7500 44.45MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 11
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 9
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Style LN
Fasteners & Connectors
Insert Screw 7000000
