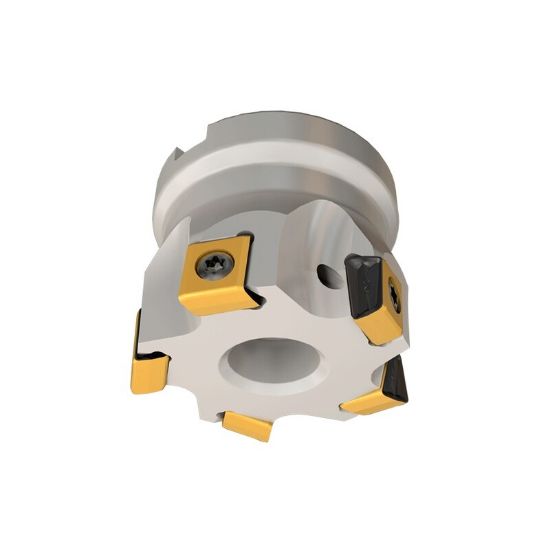

ISCAR T490 FLND2.00-05-.75-R-11 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

ANSI: T490 FLND2.00-05-.75-R-11

ISO: T490 FLND2.00-05-.75-R-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181255
Delivery date: 3-5 days
$613.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 11
Tool Material Steel
Overall Len 1.5700 39.88MM
Depth Of Cut Max 0.3100
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7005890
