  • ISCAR T490 FLN D3.00-7-1.0-R-13 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

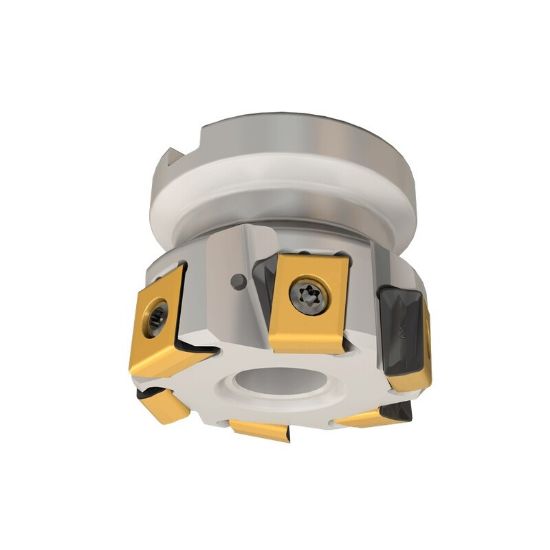

Picture of ISCAR T490 FLN D3.00-7-1.0-R-13 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

ISCAR T490 FLN D3.00-7-1.0-R-13 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

ANSI: T490 FLN D3.00-7-1.0-R-13

ISO: T490 FLN D3.00-7-1.0-R-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105323
Delivery date: 3-5 days
$898.56

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 3.0000 76.20MM
Insert Size Ic 13
Depth Of Cut Max 0.4920
Flutes/Inserts 7
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutter Dia 3.0000 76.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Style LN
Fasteners & Connectors
Insert Screw 4390045
