  • ISCAR T490 FLN D2.50-9-1.0-08 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

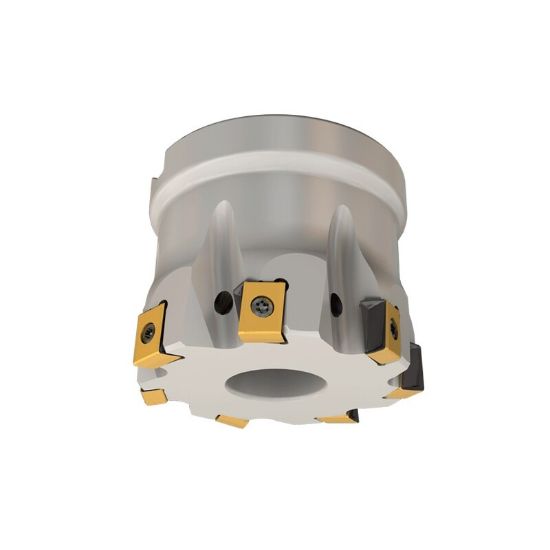

Picture of ISCAR T490 FLN D2.50-9-1.0-08 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

ISCAR T490 FLN D2.50-9-1.0-08 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

ANSI: T490 FLN D2.50-9-1.0-08

ISO: T490 FLN D2.50-9-1.0-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104904
Delivery date: 3-5 days
$768.96

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Application Face Milling, Slot Milling, Side Milling
Insert/Tool Tool
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Cutter Dia 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.3150
Overall Len 1.7500 44.45MM
Insert Size Ic 8
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 9
Cutting & Machining Properties
Insert Style LN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7001990
