  • ISCAR T490 FLN D2.50-6-1.0-R-13 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

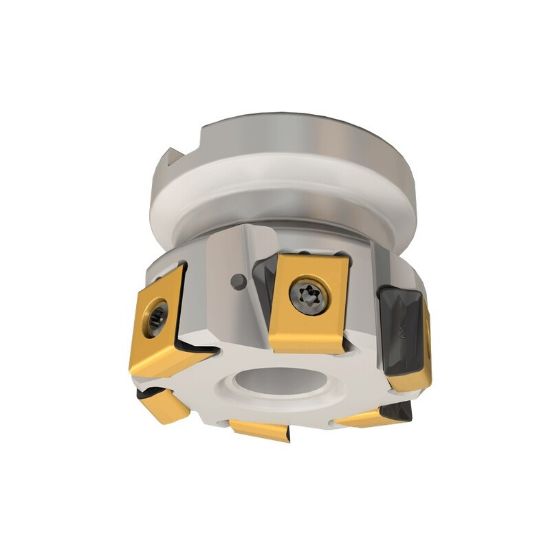

Picture of ISCAR T490 FLN D2.50-6-1.0-R-13 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ISCAR T490 FLN D2.50-6-1.0-R-13 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ANSI: T490 FLN D2.50-6-1.0-R-13

ISO: T490 FLN D2.50-6-1.0-R-13

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105322
Delivery date: 3-5 days
$722.88

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Application Side Milling, Face Milling, Slot Milling
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 13
Depth Of Cut Max 0.4920
Flutes/Inserts 6
Tool Material Steel
Overall Len 1.7500 44.45MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Style LN
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 4390045
