  • ISCAR T490 FLN D2.50-6-1.0-08 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

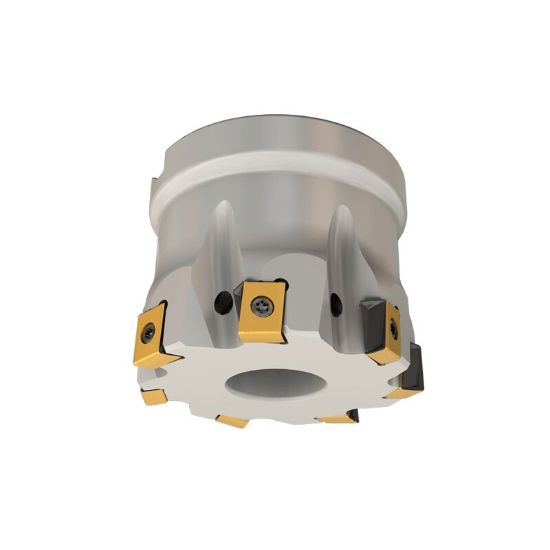

Picture of ISCAR T490 FLN D2.50-6-1.0-08 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ISCAR T490 FLN D2.50-6-1.0-08 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ANSI: T490 FLN D2.50-6-1.0-08

ISO: T490 FLN D2.50-6-1.0-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104903
Delivery date: 3-5 days
$687.36

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Insert Type Negative
Made In USA No
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 8
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.7500 44.45MM
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Depth Of Cut Max 0.3150
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000219
